Solar plants are a complex set of electrical systems, which not only require regular maintenance but also constant upgrade of the software and the hardware to operate efficiently. The large number of variables, both controllable and non-controllable, make monitoring a solar plant a challenging task.

SolarPulse^TM Background
To tackle these challenges, an effective and robust monitoring solution called SolarPulse^TM was designed by MachinePulse^TM in partnership with a large organization. There was a need for a dynamic monitoring solution that can identify, monitor and rectify performance issues for a client’s upcoming solar plant. SolarPulse^TM was thus developed as a comprehensive solution to control the solar plant by providing detailed information on every component and subsequently identifying any malfunction, failure, or defect.

So how does SolarPulse^TM improve Assets performance?
To demonstrate the capabilities of SolarPulse^TM, we considered plants with 6.12 MW solar power in Phalodi, Jodhpur and Rajasthan.

Power Plant Detail

Benefits for EPC/O&M Operations

–Reduced field expenses
The real time monitoring solution of SolarPulse^TM coupled with accurate predictions of plant efficiency and maintenance issues has enabled the O&M team at the solar plant to be proactive in their work. This has reduced the labour cost by lowering the requirements of field visits, inspections and on-site troubleshooting. The full inspections of the solar plants have reduced from weekly to monthly without a robust monitoring solution.

SolarPulse^TM has helped our customers to:

• Save 640 man-hours per year from field visits
• INR 3.84 Lakhs per year in field expenses

–Reduced reporting time
SolarPulse^TM has helped the O&M company to reduce the routine reporting time by 60%, which approximately amounts to 500 man hours per year. It has done so by providing quick access to complex sets of current and historical performance data.

Benefits for plant owners

–Increased uptime
SolarPulse^TM’s early identification, rectification and accurate forecasting has helped to increase the plant up-time from 99.00% to 99.98%

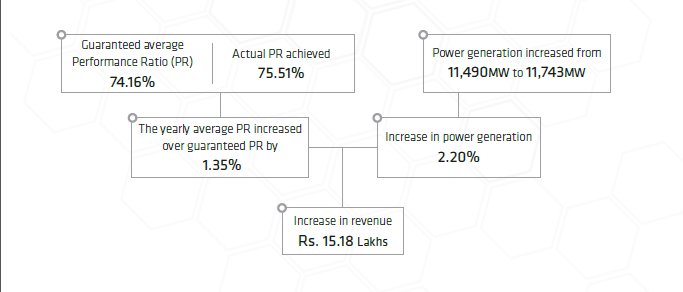

–Increased Production and Revenue
Solar preventive maintenance scheduling by SolarPulseTM has helped to keep the modules in excellent condition which has improved the efficiency of the plant.

Payback Period

The above-mentioned advantages are just a drop in the sea of benefits and savings achieved by using SolarPulse^TM. The cumulative benefit just from reduced field expenses, increase in plant uptime and PR was approximately Rs. 19 Lakhs for one year which in itself covers the cost of SolarPulse^TM and makes its payback period less than even a year.

An Example of Problem Solving with SolarPulse^TM

–Problem Identification
In April 2015, SolarPulse^TM detected a loss of output in one of the strings which had a capacity of approximately 6.12 kW. SolarPulse^TM compared the performance of this underperforming string with other strings within the inverter and also with strings across the plant and found a PV module problem only in the underperforming string. The plant was immediately informed and during this inspection it was found that the string was completely damaged because of the reason suspected by SolarPulse^TM. The problem was solved within 6 hours.

–Why is String Level Monitoring an advantage?

• The loss of output caused by this string failure represented only 0.085% of total plant capacity which is undetectable by traditional monitoring methods
• Even if the monitoring solution tracked production at the inverter level, the loss of output would represent only 0.76% of the 680 kW inverter’s capacity, which is virtually impossible to detect

–Savings
At the solar plant, SolarPulse^TM notifies around four such string faults or failures in a year. Assuming that without SolarPulse^TM, the faulty strings remain unnoticed for 6 months (until the next inspection), the loss of production would amount to 35,251 kWh per year. This represents 1.35% of total annual production and translates into revenue loss of Rs. 2.11 lakhs. The amount is significant considering the thin margins on which solar power plants run.

Conclusion

SolarPulse^TM has the ability to detect any source of faults or failures in real time, verify their potential consequences and communicate them immediately to the O&M team at the plant to rectify them. Thus, SolarPulse^TM plays an important role in ensuring that the solar plant performs efficiently and generates maximum returns for the investors.
